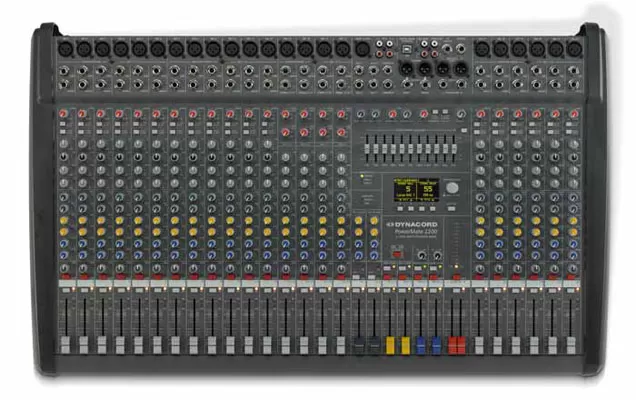

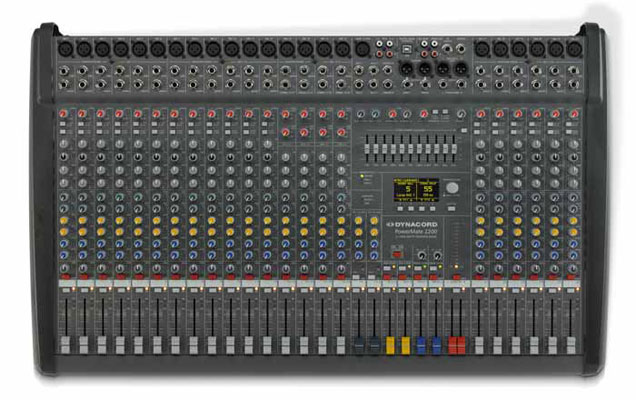

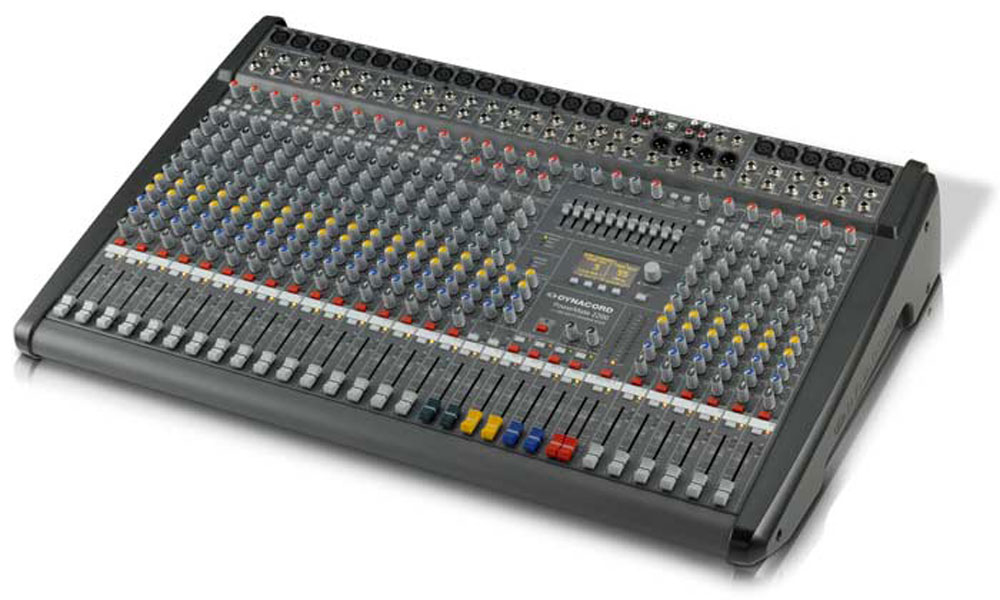

Dynacord PowerMate 2200-3 - Power mixer

Dynacord PowerMate 2200-3 - Power mixer Channels (Mono + Stereo): 18 + 4 Auxiliaries (MON, FX, AUX): 2 Pre, 2 Post, 2 Pre/Post switchable Maximum Midband Output Power, 1 kHz, THD=1%, Dual Channel into 2.66 Ohms: 2 x 1350 W into 4 Ohms: 2 x 1000 W into 8 Ohms: 2 x 600 W Rated Output Power, THD=0.1%, Single Channel into 4 Ohms: 2 x 900 W into 8 Ohms: 2 x 450 W Maximum Output Voltage of power amplifier, no load: 74 Vrms THD at 1kHz, MBW=80kHz MIC input to Master A L/R output, +16 dBu, typical: < 0.005% POWER AMP INPUTS to Speaker L/R output: < 0.075% DIM 30, power amplifier, 60Hz, 7kHz: < 0.05% IMD-SMPTE, power amplifier, 60Hz, 7 kHz: < 0.015% CMRR, MIC input, 1 kHz: > 80 dB Equivalent Input Noise, MIC Input, A-weighted, 150 &ohm: -130 dBu Signal/Noise-Ratio, power amplifier, A-weighted, 4 Ohms: 105 dB Output Stage Topology, amplifier: Class D Equalization LO Shelving: +/- 15 dB / 60 Hz MID Peaking, mono inputs: +/- 15 dB / 100 Hz .. 8 kHz MID Peaking, stereo inputs: +/- 12 dB / 2.4 kHz HI Shelving: +/- 15 dB / 12 kHz Master EQ, 11-band (63, 125, 250, 400, 1k, 1.6k, 2.5k, 4k, 6.3k, 12k Hz): +/- 10 dB / Q = 1.5-2.5 Filter LO-CUT, mono inputs: f=80 Hz, 18 dB/oct VOICE FILTER, mono inputs FEEDBACK FILTER, MON1/2: 70 Hz .. 7 kHz, Notch, -9 dB Speaker Processing: LPN, switchable Display: High Contrast OLED Effects: Dual stereo 24/48-bit multi effects processors Effects presets: 100 Factory + 20 User, Tap-Delay Remote control: Footswitch, MIDI Digital Audio Interface Channels: 4 In / 4 Out AD/DA Conversion: 24bit Sampling Rate: 44.1 / 48 / 88.2 /96 kHz PC Interface: USB 2.0, Female Type B MIDI Interface: 5-pin DIN connector, In / Out Output Power Control: Adjustale RMS Limiter Protections Mixer Outputs (Relay controlled): MON1, MON2, MASTER A Amplifier: Audio Limiters, High Temperature, DC, HF, Short Circuit, Peak Current Limiters, Turn-On-Delay Switching Mode Power Supply (µPC controlled): Inrush Current Limiters, Mains Over/Under Voltage, Mains Over Current, High Temperature Cooling: Continuous speed controlled Fans Phantom Power, switchable in groups: 48V DC Power Requirements (SMPS with auto range mains input): 100 V .. 240 V AC, 50 Hz .. 60 Hz Power Consumption, at 1/8 maximum output power, 4 Ohms: 450 W Safety Class: 1 Ambient Temperature Limits: +5 °C .. + 40 °C / 40 °F .. 105 °F Dimensions (W x H x D), mm without lid: 818.5 x 155.0 x 498.5 Weight Net weight, without lid: 18.0 kg Shipping Weight: 22.0 kg Optional Accessories Gooseneck Lamp, 12V/5W, 12", XLR 4 pol: F01U118983 (DC-LITLITE-4P) FS11 (Footswitch with LED): F01U100598 (DC-FS11) Uputstvo Za Upotrebu Mixera Power Mate 3
